Poyner Spruill:

Contract Management Application

Solution Summary

Poyner Spruill, a law firm with over 135 years of history in North Carolina, used PowerApps to create a contract management application for use by client organizations. Having created about 85% of the application's functionality in-house, they sought Qdabra's expertise to wrap up final functionality, design change requests, and assessment of techniques for deploying to other sites.

The Gatekeeper application leverages Microsoft Flow and PowerApps to provide a single point of entry to create and manage both customer and vendor contracts, as well as the relationships between them.

Challenge

Managing contracts and documents for both clients and vendors, as well as the relationships between these entities, was extremely difficult using standard SharePoint lists. Poyner Spruill needed an application that could provide users with easy access to associated items without needing to manually navigate between lists and libraries.

Simply using lookup columns was not enough – they needed to provide users with a rich one-stop solution for creating and relating client and vendor contract profiles and ease the complexity of locating various necessary documents. Already familiar with SharePoint Online, it seemed like a natural starting place for their app development.

Solution Strategy

Like many new PowerApps developers, Poyner Spruill was able to quickly set up an initial app prototype that reflected the real-world data structure needed for contract management. The app is used to create new client and vendor profiles, with SharePoint Online lists for data storage. Relationships can be created between clients and vendors – with any given client associated with one or more vendors, and any given vendor associated with one or more clients.

PowerApps forms made submitting and editing data trivial, and functions were used where forms weren’t a good fit. Microsoft Flows, with the SharePoint HTTP Request action, were used for creating new document sets in appropriate libraries when a client or a vendor was added.

Links in the app take the user to the necessary document set if they wish to upload additional documents, and galleries within the app display the available documents for the user.

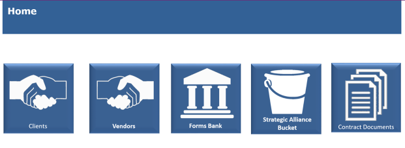

A landing screen provides navigation to both in-app and SharePoint resources:

Color coding was used throughout the app to help the user know if they were working with clients or vendors – client pages used a blue header, while vendors were green.

While Poyner Spruill was close to wrapping up the app in-house, they needed a hand with a few features – and that’s where Qdabra came in!

We simplified deploying the app in new environments:

• Moved links to a separate list to make importing more dynamic and reduce designer changes
• Created documentation with steps to export, import, and perform post import fix-ups

We improved the look and feel of the app:

• Changed font sizing to dynamic based on text length in labels (ensures all text is displayed regardless of device)

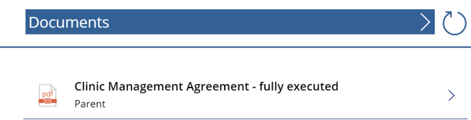

• Changed headings to make the click action more discoverable:

We replaced data delete with smart hiding (better for audits):

• Added a column to indicate what should be hidden
• Filtered galleries and controls to hide items
• Provided “restore” feature for admins to turn hiding off

Results

Poyner Spruill’s application is ready for use – and for sharing with others who might wish to use it. With full documentation and testing of the export / import process, they have a step-by-step guide for deploying to another environment, and all the required features have been implemented.

In addition, they’ve had the benefit of outside testing on the app and Flows, so they can feel confident that their new app will perform as anticipated.

Ennis Electric:

Infraction Report System

Qdabra builds infraction report system for Ennis Electric, an award-winning electrical contractor

Overview

The infraction report system allows supervisors to electronically submit and review infraction reports for employees.

“PowerApps combined with Flow has allowed us to solve very simple business workflows that had been previously challenging. Qdabra’s experience with these solutions and their advanced knowledge of SharePoint allowed us to implement and deploy quickly.Stephen Blankenship, Ennis Electric

PowerApps Application

The application stores data in a SharePoint list and uses other SharePoint list and SQL data sources to provide supplementary data.

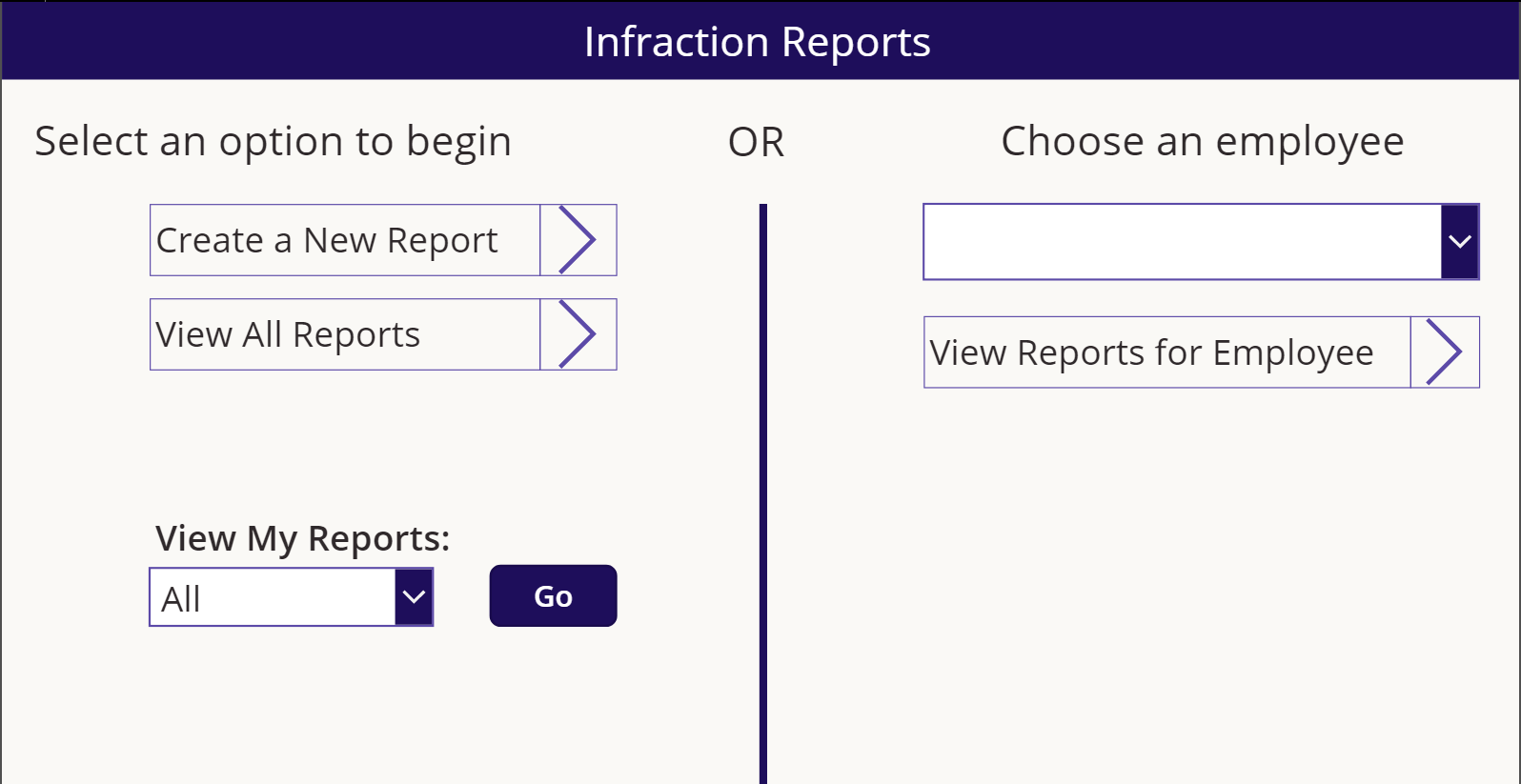

From the initial screen, users can choose to create a new report, view all the reports, view reports for a specific employee, or view reports they have created based on status.

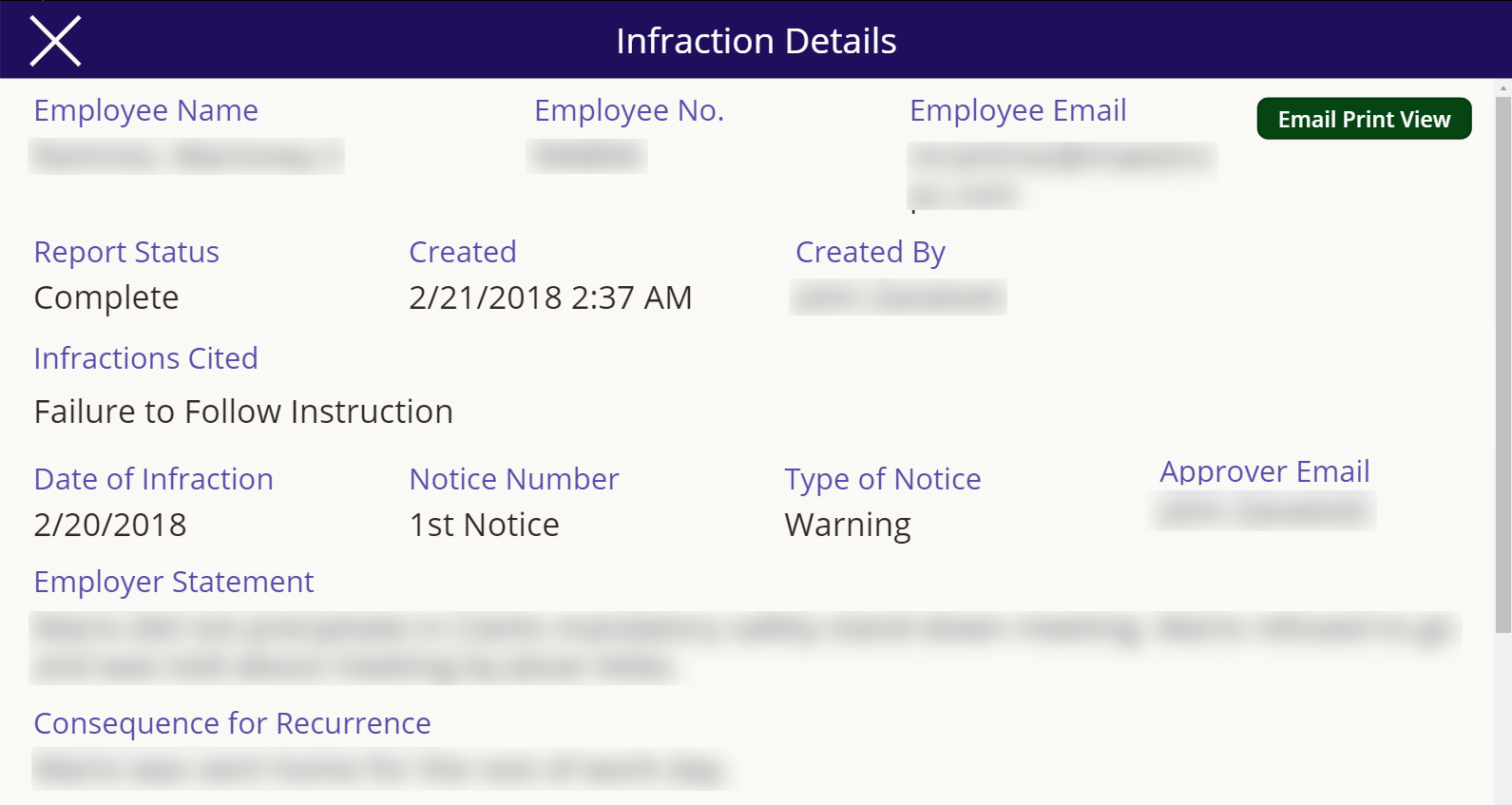

Viewing all reports, reports for a given employee, or my reports based on status navigates the user to a screen with a gallery, which allows the user to select a report to view in a display form.

Email Print View button executes a Flow – see Flow section for details.

If the user viewing the record is either the creator or the approver, and if the record is in a “Draft” status, a pencil icon is displayed in the upper right allowing the user to edit and resubmit the report.

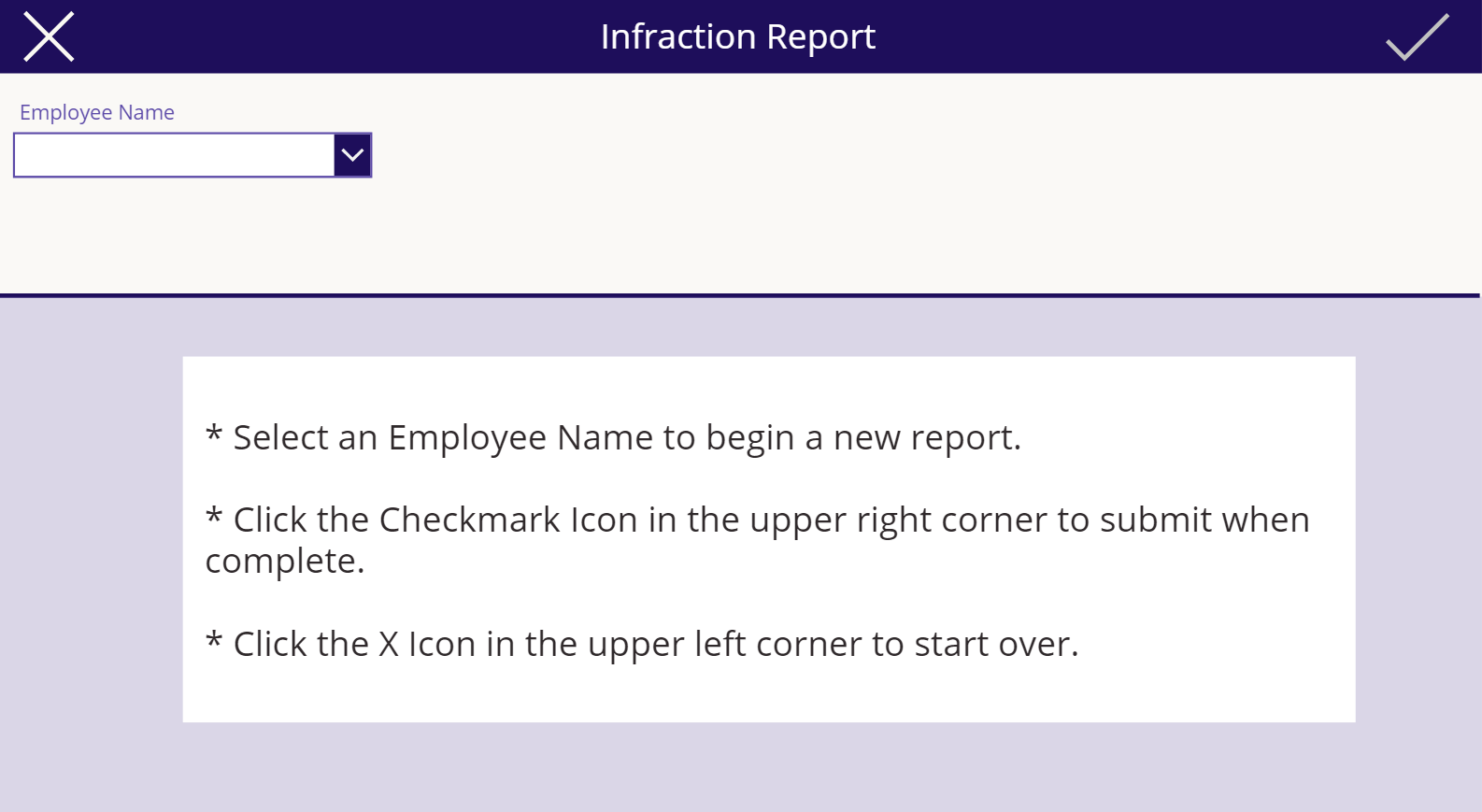

The edit screen is also used for new reports. When creating a new report, the user is presented with help text:

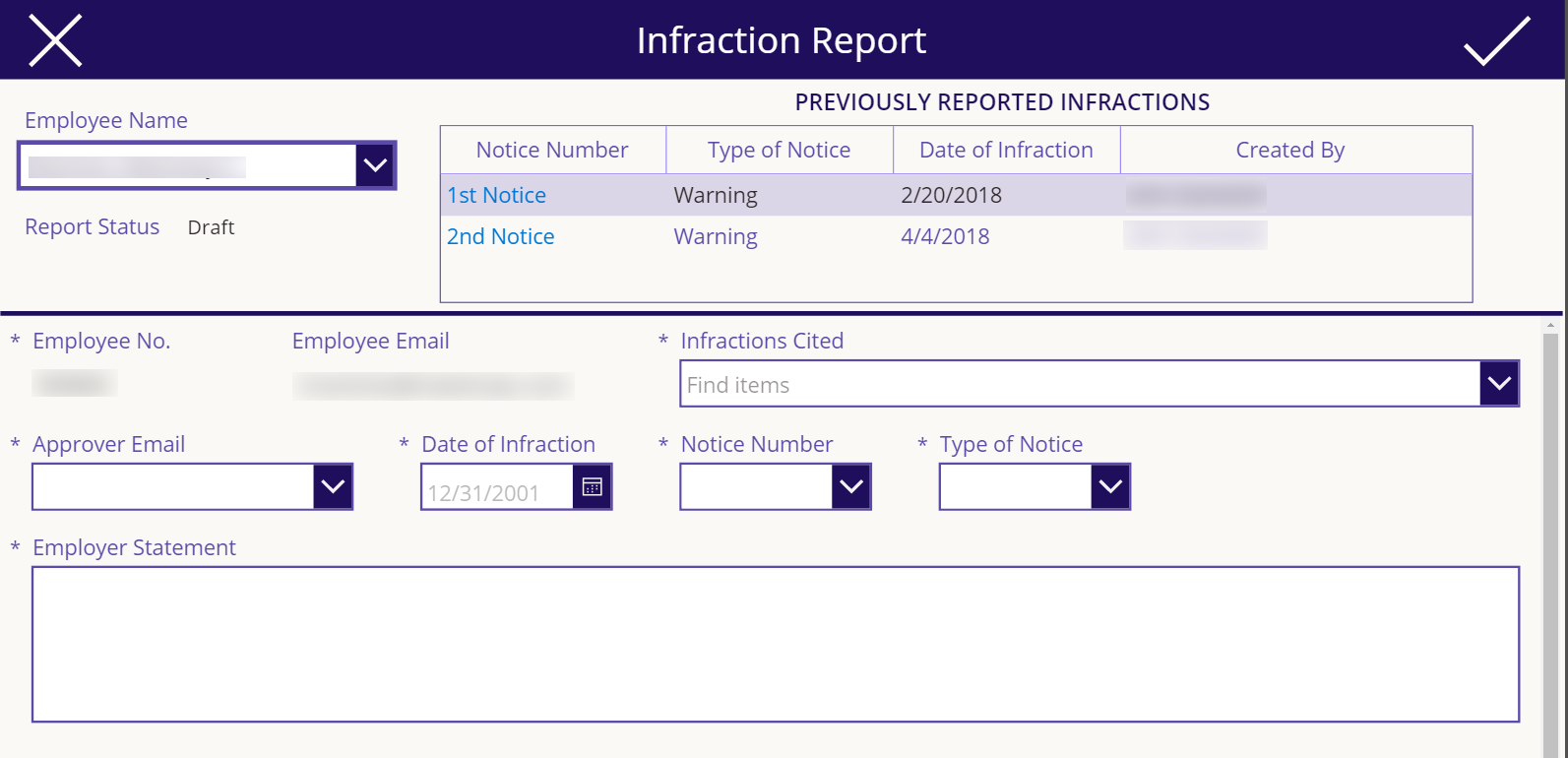

Selecting an employee displays a data table with the previously created infraction reports for that employee. Clicking on the Notice Number re-opens the detail screen with that report loaded for display.

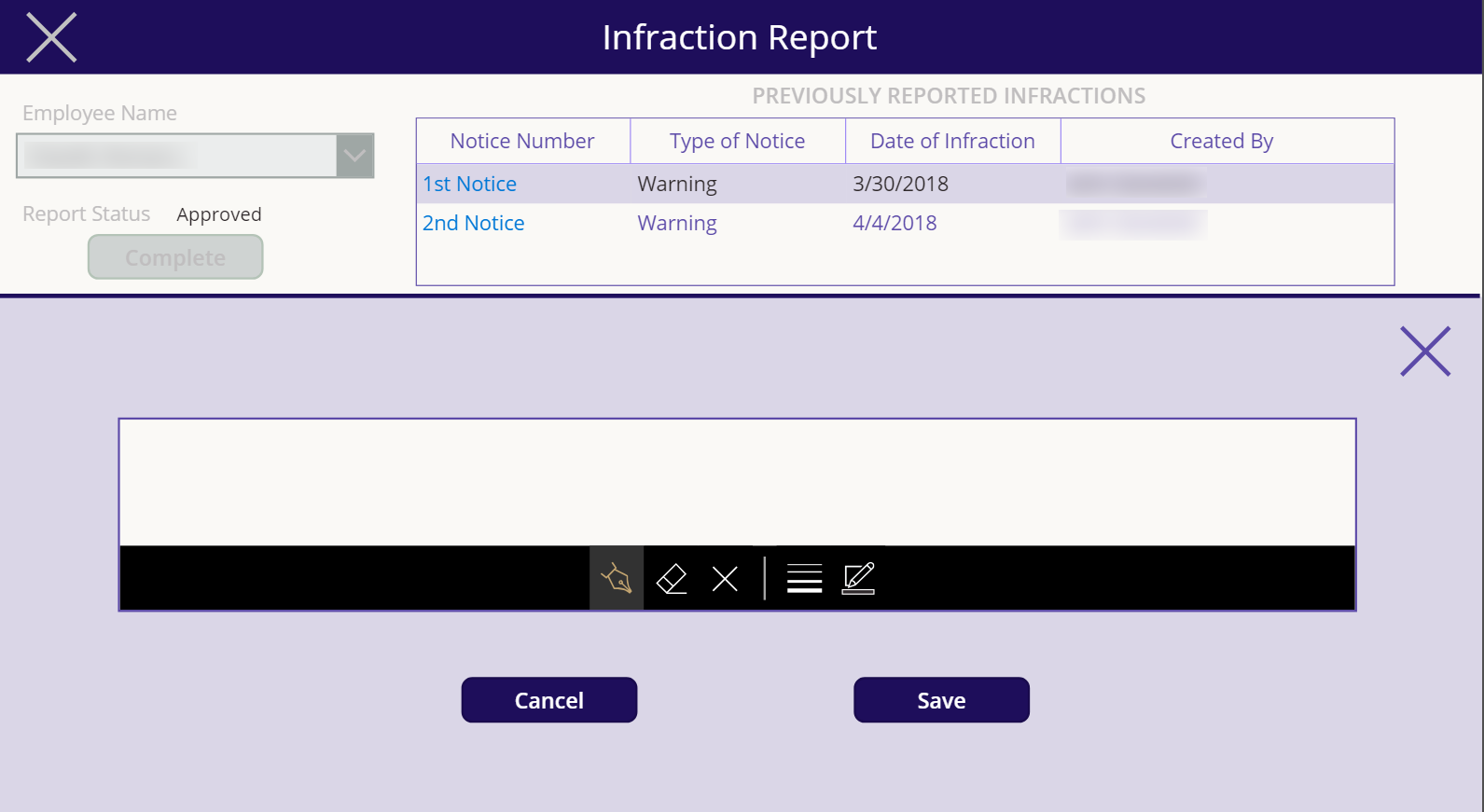

There is an area at the bottom of reports to capture employee signatures – the signature area is displayed in an overlay:

Saving a signature in the app attaches the signature JPG to the Infraction Report list item using Flow & a custom connector (see the Flow section for more details). This Flow runs when the edit form submit succeeds.

Flows

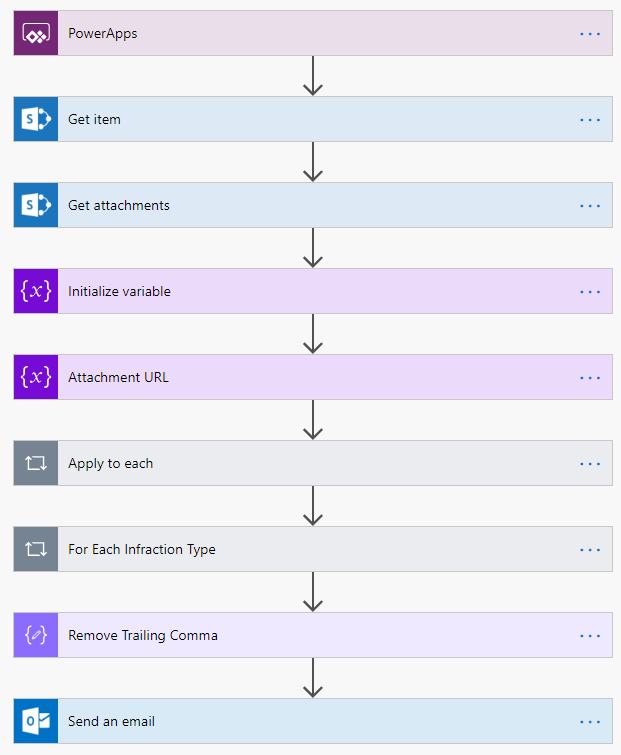

From the detail screen, a user can send themselves a “print view”. The button passes the list item ID for the current Infraction Report and the user’s email address to the Flow. The Flow then gets the list item, gets URLS for any signature attachment, and sends an HTML email to the user:

Since attachments are repeating, the Flow loops through them to get the URL for any signature URLs. Infraction Types are a multi-select, so those are also concatenated via a loop.

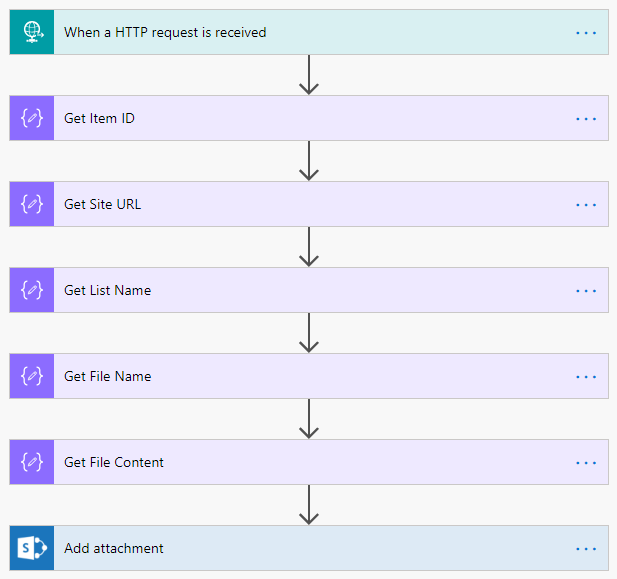

Another Flow is used to attach the signature files to the list item when / if the employee signs the report. A custom connector in PowerApps allows access to the Flow, which has an http request trigger. The app passes in the name of the attachment, the ID for the item to attach to, the image file, the site URL and the list name, to allow for use in other applications.
